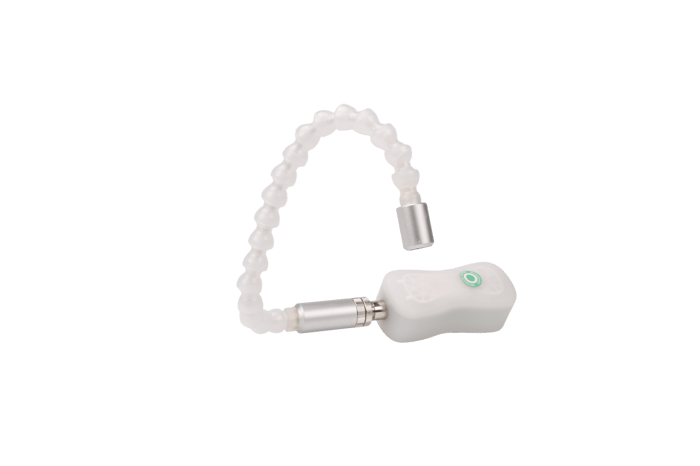

Infrared Thermometer image

Infrared Thermometer

$634.16

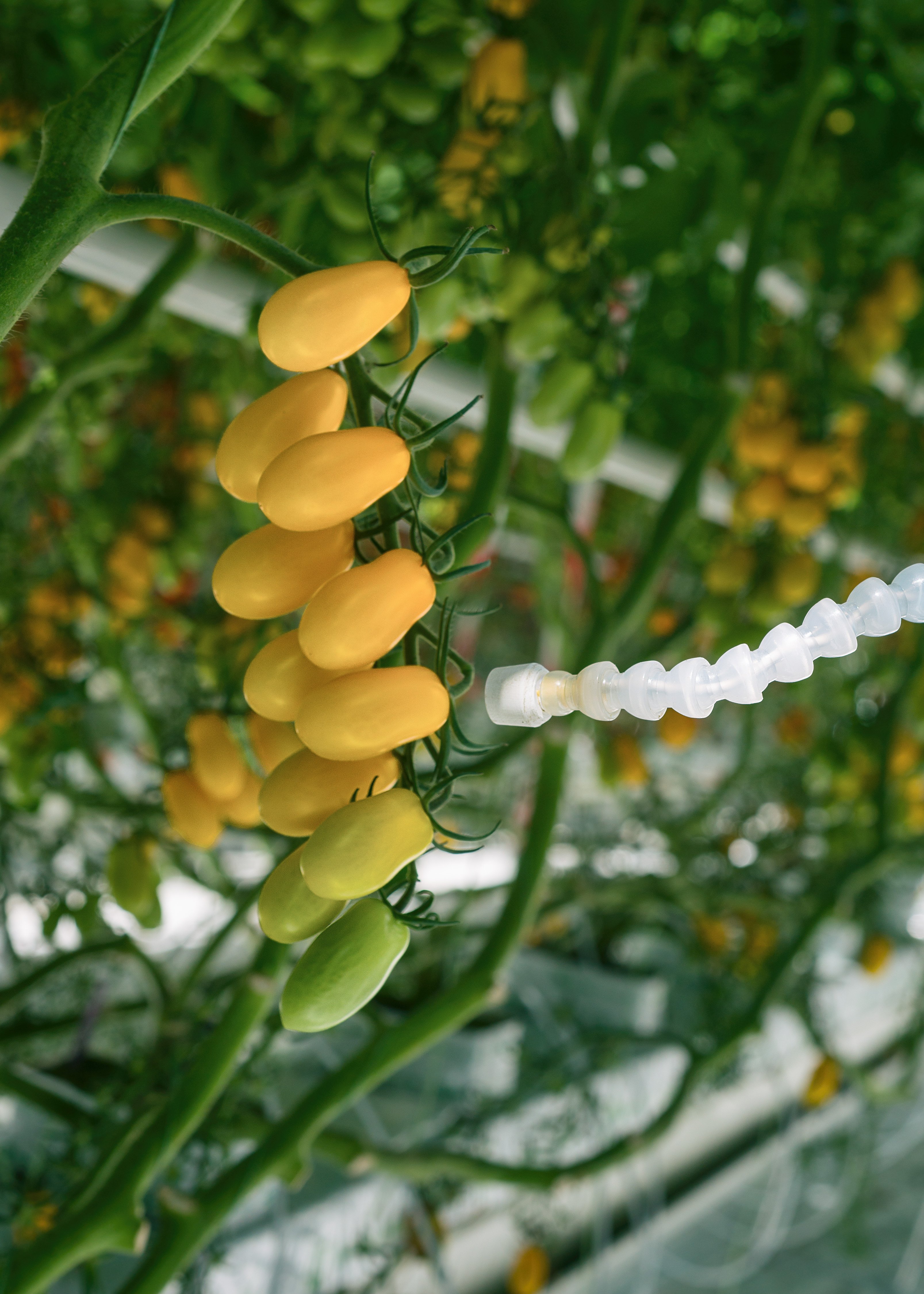

The Infrared (IR) Thermometer allows non-contact measurements of the surface temperature of, for example, leaves or fruits. The sensor is used to detect plant stress (VPD). The IR Thermometer is powered by the FireFly sensor node, which enables data to be uploaded to the InSight platform.

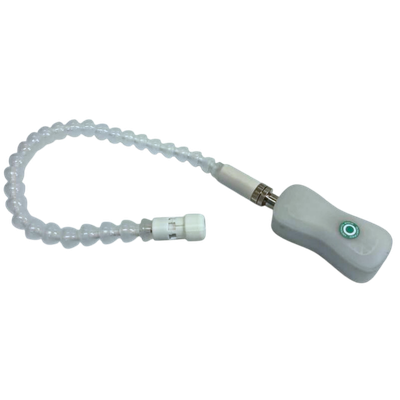

Product Images
Product Specifications
Infrared (IR) Temperature

Range:
0° to +60°C ( 32° to 140°F)



Accuracy at Surface Temperature:
±0.3°C (±0.54°F) at +22° to +40°C (+72° to 104°F)

±0.5°C (±0.9°F) at 0° to +60°C (+32° to 140°F)

±2.0°C (±3.6°F) -70° to +200°C (-94° to 392°F)

Infrared Sensor

Measurement Range:
-70° to +200°C (-94° to 392°F)



Resolution:
0.02°C (0.14°F)



Viewing Angle:
35° based on 50% signal strength



Distance per Spot Diameter:
1:1.59 based on 50% signal strength



Object Emissivity:
0 to 1



Spectral Response:
550 to 1,400 nm

General

Bending Radius:
≥ 25 mm (≥0.98 in)



Size:
L x D = 35 x 2 cm (13.78 x 0.79 in)



Weight:
85 g (3 oz)



Environmental Rating:
IP51
