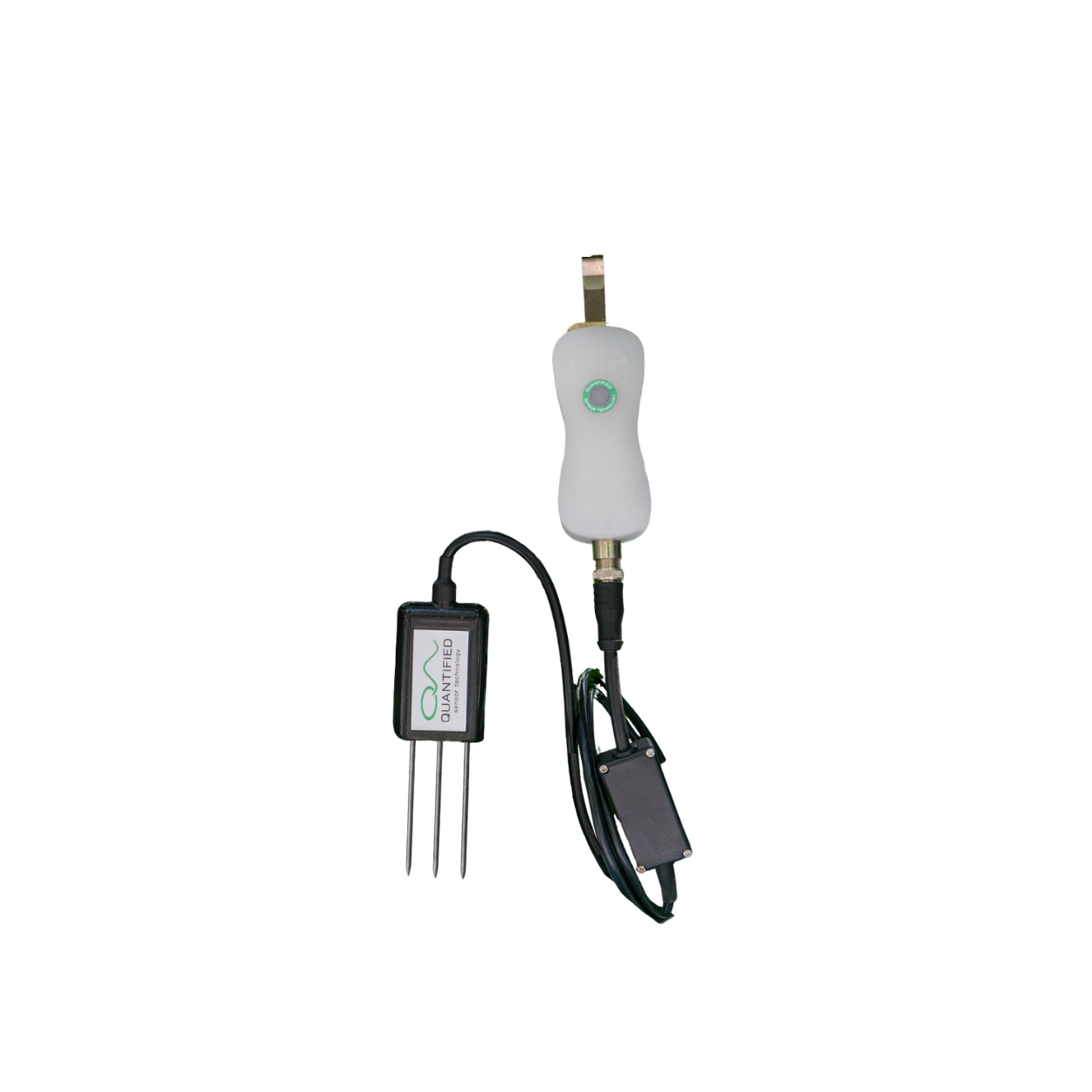

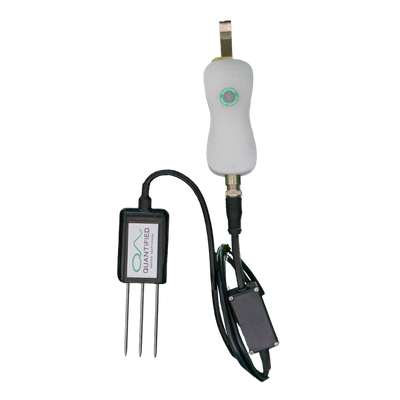

Poseidon WET Sensor

$490.19

The Poseidon WET sensor measures permittivity*, electro-conductivity (EC), and temperature of soil or substrate. Three versions are available: with a single, double, or triple measuring head. The (multi-) Poseidon should be connected to a FireFly. FireFly sensor node not included.

Product Images
FF+Pos tomato close up-1-1
WEB - Poseidon WET single (Carosel)-1
FF+Pos tomato close up-1-1
WEB - Poseidon WET single (Carosel)-1
Product Specifications
Dielectric Permittivity (Relative)

Range:
1 to 80 where 1 is air and 80 is distilled water



Accuracy:
<3%



Resolution:
1%

Electrical Conductivity (EC)

Measurement Range:
0 to 20 dS/m



Accuracy:
±3%



Resolution:
10 dS/m

Temperature

Range:
-40º to 80ºC (-40º to 176ºF)



Accuracy:
±0.5°C from -40° to 80°C (±0.9° from -40° to +176°F)



Resolution:
0.1 ºC (0.18 ºF)

Soil Sensor

Dielectric Measurement Frequency:
50 MHz (Time Domain Reflectometry - TDR)



Measurement Probes:
Stainless Steel; L x W = 7 x 2.5 cm (2.76 x 0.98 in)



Connector Cable Length:
2 m (6.56 ft)



Environmental Rating:
IP67
