Smart Gutter Weight Scale

$2,078.31

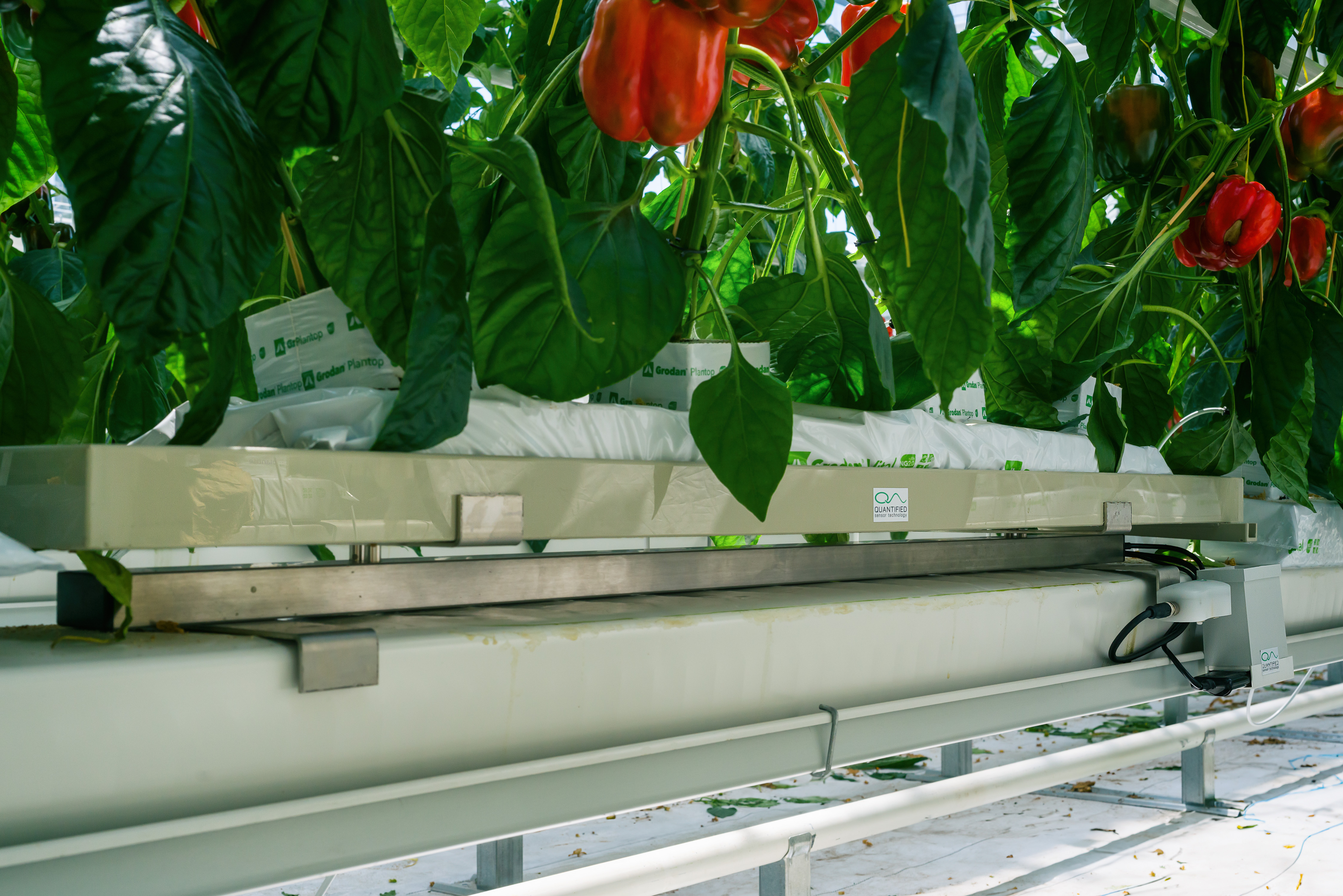

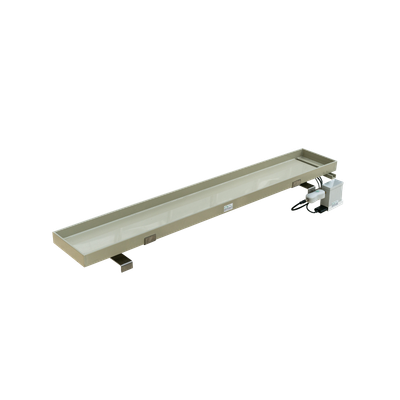

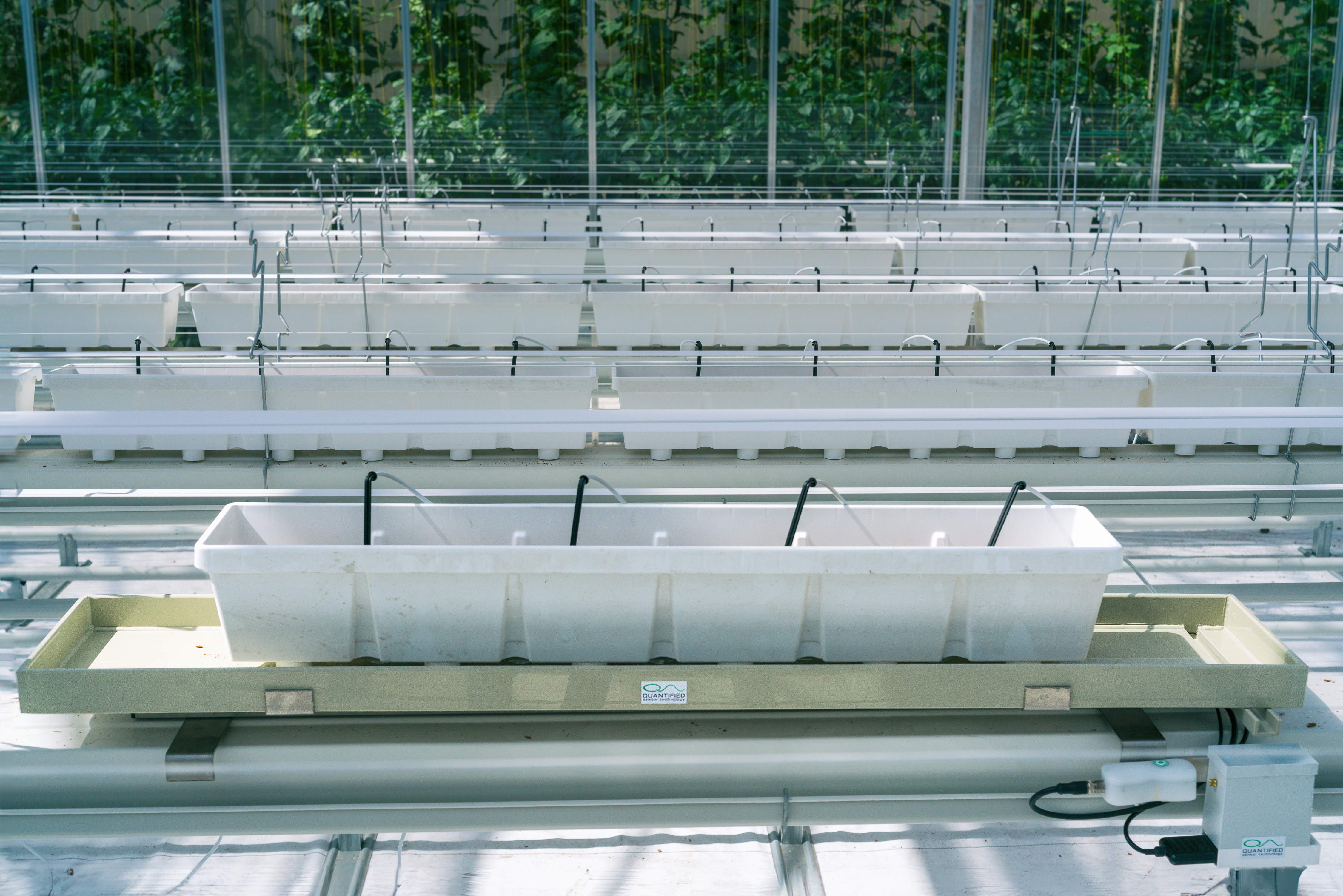

The smart gutter enables optimization of fertigation in substrate slabs or multiple small pots by measuring substrate weight, drain volume (optional), drain electrical conductivity (EC) (optional), and drain temperature (Optional) every five minutes. Configurations including drain volume and EC incur additional costs. The Smart Gutter is powered by the FireFly node, which uploads data to the InSight platform. FireFly sensor node sold separately.

Drain Volume

Maximum Flow Rate:
1 ml/s (0.03 oz/s) (can be increased to 2 ml/s (0.07 oz/s)

Accuracy:
±5%

Resolution:
5 ml (0.17 fl oz); 10 ml 0.34 fl oz)

Drain Electrical Conductivity (EC)

Range:
0 to 6 dS/m

Accuracy:
±3% from 0 to 2 dS/m typical to a maximum of ±5% from 2 to 6 dS/m

Resolution:
0.1 dS/m

Drain Temperature

Range:
0.1°C (0.18°F)

Resolution:
±0.5°C from -40° to 80°C (±0.9° from -40° to +176°F)

Accuracy:
-40° to +80°C (-40° to +176°F)

Measurement Range - Weight

Maximum Load:
40 kg (88 lbs)

Accuracy:
±0.04% of the maximum load plus ±0.02% of the maximum load per 10°C (°F)

Resolution:
1 g (0.035 oz)

Temperature Range - Weight

Range:
-10° to +40°C (-14° to +104°F)

Accurate Range:
-20° to +60°C (-4° to +140°F)

General

Material:
Stainless Steel and Polypropylene

Foot Brackets:
218 mm (8.58 in) for the inner size

Environmental Rating:
IP61

Weight:
8 kg (17.6 lb)

Size:
L x W x H = 135 × 20 × 4.2 cm (4.43 x 0.66 x 0.14 ft) for the inner size channel
